產品介紹
鑽頭

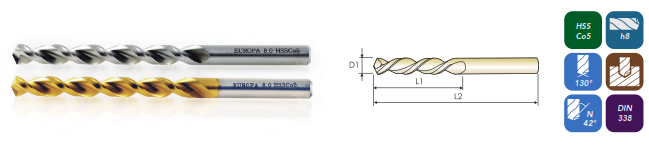

【標準型 / TiN】
材質：HSS-CO5%
適用：於加工鋁、鋁合金、鋁矽合金、鋅、精煉銅、木材及其他軟質合成材料
- 螺旋角：42°
- 頂角：130°
- 刃徑：2.0mm ~ 20.0mm
| 數量 | 規格 |
| 111支 附壓克力盒 |
2.0~13.0 |
- 刃徑D1x刃長L1x全長L2
2.0 X 12 X 38
2.1 X 12 X 38
2.2 X 13 X 40
2.3 X 13 X 40
2.4 X 14 X 43
2.5 X 14 X 43
2.6 X 14 X 43
2.7 X 16 X 46
2.8 X 16 X 46
2.9 X 16 X 46
3.0 X 16 X 46
3.1 X 18 X 49
3.2 X 18 X 49
3.3 X 18 X 49
3.4 X 20 X 52
3.5 X 20 X 52
3.6 X 20 X 52
3.7 X 20 X 52
3.8 X 22 X 55
3.9 X 22 X 55
4.0 X 22 X 55
4.1 X 22 X 55
4.2 X 22 X 55
4.3 X 24 X 58
4.4 X 24 X 58
4.5 X 24 X 58
4.6 X 24 X 58
4.7 X 24 X 58
4.8 X 26 X 62
4.9 X 26 X 62
5.0 X 26 X 62
5.1 X 26 X 62
5.2 X 26 X 62
5.3 X 26 X 62
5.4 X 28 X 66
5.5 X 28 X 66
5.6 X 28 X 66
5.7 X 28 X 66
5.8 X 28 X 66
5.9 X 28 X 66
6.0 X 28 X 66
6.1 X 31 X 70
6.2 X 31 X 70
6.3 X 31 X 70
6.4 X 31 X 70
6.5 X 31 X 70
6.6 X 31 X 70
6.7 X 31 X 70
6.8 X 34 X 74
6.9 X 34 X 74
7.0 X 34 X 74
7.1 X 34 X 74
7.2 X 34 X 74
7.3 X 34 X 74
7.4 X 34 X 74
7.5 X 34 X 74
7.6 X 37 X 79
7.7 X 37 X 79
7.8 X 37 X 79
7.9 X 37 X 79
8.0 X 37 X 79
8.1 X 37 X 79
8.2 X 37 X 79
8.3 X 37 X 79
8.4 X 37 X 79
8.5 X 37 X 79
8.6 X 40 X 84
8.7 X 40 X 84
8.8 X 40 X 84
8.9 X 40 X 84
9.0 X 40 X 84
9.1 X 40 X 84
9.2 X 40 X 84
9.3 X 40 X 84
9.4 X 40 X 84
9.5 X 40 X 84
9.6 X 43 X 89
9.7 X 43 X 89
9.8 X 43 X 89
9.9 X 43 X 89
10.0 X 43 X 89
10.1 X 43 X 89
10.2 X 43 X 89
10.3 X 43 X 89
10.4 X 43 X 89
10.5 X 43 X 89
10.6 X 43 X 89
10.7 X 47 X 95
10.8 X 47 X 95
10.9 X 47 X 95
11.0 X 47 X 95
11.1 X 47 X 95
11.2 X 47 X 95
11.3 X 47 X 95
11.4 X 47 X 95
11.5 X 47 X 95
11.6 X 47 X 95
11.7 X 47 X 95
11.8 X 47 X 95
11.9 X 51 X 102
12.0 X 51 X 102
12.1 X 51 X 102
12.2 X 51 X 102
12.3 X 51 X 102
12.4 X 51 X 102
12.5 X 51 X 102
12.6 X 51 X 102
12.7 X 51 X 102
12.8 X 51 X 102
12.9 X 51 X 102
13.0 X 51 X 102
13.5 X 54 X 107
14.0 X 54 X 107
14.5 X 56 X 111
15.0 X 56 X 111
15.5 X 58 X 115
16.0 X 58 X 115
16.5 X 60 X 119
17.0 X 60 X 119
17.5 X 62 X 123
18.0 X 62 X 123
18.5 X 64 X 127
19.0 X 64 X 127
19.5 X 66 X 131
20.0 X 66 X 131

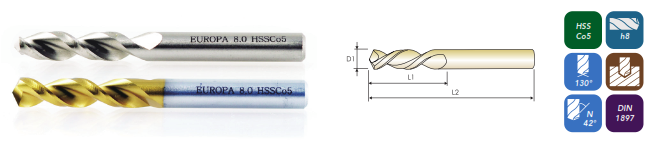

【長刃型 / TiN】
材質：HSS-CO5%
適用：於加工鋁、鋁合金、鋁矽合金、鋅、精煉銅、木材及其他軟質合成材料
- 螺旋角：42°
- 頂角：130°
- 刃徑：2.0mm ~ 16.0mm
| 數量 | 規格 |
| 111支 附壓克力盒 |
2.0~13.0 |
- 刃徑D1x刃長L1x全長L2
2.0 X 24 X 49
2.1 X 24 X 49
2.2 X 27 X 53
2.3 X 27 X 53
2.4 X 30 X 57
2.5 X 30 X 57
2.6 X 30 X 57
2.7 X 33 X 61
2.8 X 33 X 61
2.9 X 33 X 61
3.0 X 33 X 61
3.1 X 36 X 65
3.2 X 36 X 65
3.3 X 36 X 65
3.4 X 39 X 70
3.5 X 39 X 70
3.6 X 39 X 70
3.7 X 39 X 70
3.8 X 43 X 75
3.9 X 43 X 75
4.0 X 43 X 75
4.1 X 43 X 75
4.2 X 43 X 75
4.3 X 47 X 80
4.4 X 47 X 80
4.5 X 47 X 80
4.6 X 47 X 80
4.7 X 47 X 80
4.8 X 52 X 86
4.9 X 52 X 86
5.0 X 52 X 86
5.1 X 52 X 86
5.2 X 52 X 86
5.3 X 52 X 86
5.4 X 57 X 93
5.5 X 57 X 93
5.6 X 57 X 93
5.7 X 57 X 93
5.8 X 57 X 93
5.9 X 57 X 93
6.0 X 57 X 93
6.1 X 63 X 101
6.2 X 63 X 101
6.3 X 63 X 101
6.4 X 63 X 101
6.5 X 63 X 101
6.6 X 63 X 101
6.7 X 63 X 101
6.8 X 69 X 109
6.9 X 69 X 109
7.0 X 69 X 109
7.1 X 69 X 109
7.2 X 69 X 109
7.3 X 69 X 109
7.4 X 69 X 109
7.5 X 69 X 109
7.6 X 75 X 117
7.7 X 75 X 117
7.8 X 75 X 117
7.9 X 75 X 117
8.0 X 75 X 117
8.1 X 75 X 117
8.2 X 75 X 117
8.3 X 75 X 117
8.4 X 75 X 117
8.5 X 75 X 117
8.6 X 81 X 125
8.7 X 81 X 125
8.8 X 81 X 125
8.9 X 81 X 125
9.0 X 81 X 125
9.1 X 81 X 125
9.2 X 81 X 125
9.3 X 81 X 125
9.4 X 81 X 125
9.5 X 81 X 125
9.6 X 87 X 133
9.7 X 87 X 133
9.8 X 87 X 133
9.9 X 87 X 133
10.0 X 87 X 133
10.1 X 87 X 133
10.2 X 87 X 133
10.3 X 87 X 133
10.4 X 87 X 133
10.5 X 87 X 133
10.6 X 87 X 133
10.7 X 94 X 142
10.8 X 94 X 142
10.9 X 94 X 142
11.0 X 94 X 142
11.1 X 94 X 142
11.2 X 94 X 142
11.3 X 94 X 142
11.4 X 94 X 142
11.5 X 94 X 142
11.6 X 94 X 142
11.7 X 94 X 142
11.8 X 94 X 142
11.9 X 101 X 151
12.0 X 101 X 151
12.1 X 101 X 151
12.2 X 101 X 151
12.3X 101 X 151
12.4 X 101 X 151
12.5 X 101 X 151
12.6 X 101 X 151
12.7 X 101 X 151
12.8 X 101 X 151
12.9 X 101 X 151
13.0 X 101 X 151
13.5 X 108 X 160
14.0 X 108 X 160
14.5 X 114 X 169
15.0 X 114 X 169
15.5 X 120 X 178
16.0 X 120 X 178
