產品介紹
鑽頭
【8%】
材質:HSS-CO8%
適用:於加工不鏽鋼、鈦合金和鎳鉻合金等難切削材料
- 刃形:右螺旋形
- 頂角:135°
- 表面處理:亮面體,前端處為 TiN 鍍膜
- 刃徑:1.0mm ~ 13.0mm
數量 | 規格 |
100 支 附圓盤 |
1.0~10.0,10.5,10.9,11.0 11.5,11.9,12.0,12.5,12.9,13.0 |
121支 附壓克力盒 |
1.0~13.0 |

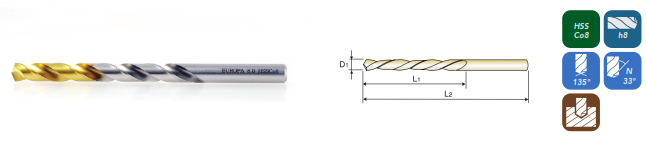

- 刃徑D1x刃長L1x全長L2
1.0 X 18 X 40
1.1 X 20 X 42
1.2 X 20 X 42
1.3 X 22 X 45
1.4 X 23 X 48
1.5 X 23 X 48
1.6 X 25 X 50
1.7 X 25 X 50
1.8 X 28 X 52
1.9 X 28 X 52
2.0 X 29 X 55
2.1 X 29 X 55
2.2 X 33 X 58
2.3 X 33 X 58
2.4 X 35 X 61
2.5 X 35 X 61
2.6 X 37 X 64
2.7 X 37 X 64
2.8 X 39 X 67
2.9 X 42 X 71
3.0 X 42 X 71
3.1 X 42 X 71
3.2 X 42 X 71
3.3 X 45 X 73
3.4 X 45 X 73
3.5 X 45 X 73
3.6 X 48 X 76
3.7 X 48 X 76
3.8 X 48 X 76
3.9 X 51 X 79
4.0 X 54 X 83
4.1 X 54 X 83
4.2 X 54 X 83
4.3 X 54 X 83
4.4 X 56 X 86
4.5 X 56 X 86
4.6 X 56 X 86
4.7 X 59 X 89
4.8 X 59 X 89
4.9 X 62 X 92
5.0 X 62 X 92
5.1 X 62 X 92
5.2 X 64 X 95
5.3 X 64 X 95
5.4 X 64 X 95
5.5 X 64 X 95
5.6 X 67 X 98
5.7 X 67 X 98
5.8 X 67 X 98
5.9 X 67 X 98
6.0 X 70 X 102
6.1 X 70 X 102
6.2 X 70 X 102
6.3 X 70 X 102
6.4 X 73 X 105
6.5 X 73 X 105
6.6 X 73 X 105
6.7 X 73 X 105
6.8 X 73 X 105
6.9 X 73 X 105
7.0 X 73 X 105
7.1 X 75 X 108
7.2 X 75 X 108
7.3 X 75 X 108
7.4 X 78 X 111
7.5 X 78 X 111
7.6 X 78 X 111
7.7 X 81 X 114
7.8 X 81 X 114
7.9 X 81 X 114
8.0 X 81 X 114
8.1 X 84 X 117
8.2 X 84 X 117
8.3 X 84 X 117
8.4 X 87 X 121
8.5 X 87 X 121
8.6 X 87 X 121
8.7 X 87 X 121
8.8 X 89 X 124
8.9 X 89 X 124
9.0 X 89 X 124
9.1 X 89 X 124
9.2 X 92 X 127
9.3 X 92 X 127
9.4 X 92 X 127
9.5 X 92 X 127
9.6 X 95 X 130
9.7 X 95 X 130
9.8 X 95 X 130
9.9 X 95 X 130
10.0 X 98 X 130
10.1 X 98 X 133
10.2 X 98 X 133
10.3 X 98 X 133
10.4 X 98 X 133
10.5 X 100 X 137
10.6 X 100 X 137
10.7 X 100 X 137
10.8 X 103 X 140
10.9 X 103 X 140
11.0 X 103 X 140
11.1 X 103 X 140
11.2 X 106 X 143
11.3 X 106 X 143
11.4 X 106 X 143
11.5 X 106 X 143
11.6 X 109 X 146
11.7 X 109 X 146
11.8 X 109 X 146
11.9 X 109 X 146
12.0 X 111 X 149
12.1 X 111 X 149
12.2 X 111 X 149
12.3 X 111 X 149
12.4 X 114 X 152
12.5 X 114 X 152
12.6 X 114 X 152
12.7 X 114 X 152
12.8 X 114 X 152
12.9 X 114 X 152
13.0 X 114 X 152
