產品介紹

螺絲攻


【PS】

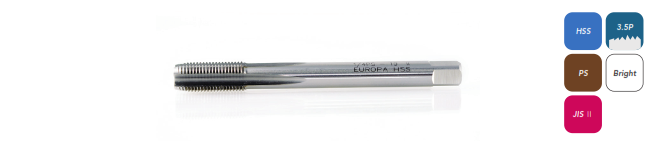

PS直牙長柄管牙絲攻 LONG SHANK STRAIGHT PIPE TAPS FOR PS THREADS



適用：於深孔之直管內部的螺紋加工

規格

  • 100mm

PS 1/8 -28 PS 1/4 -19 PS 3/8 -19

  • 120mm

PS 1/8 -28 PS 1/4 -19 PS 3/8 -19 PS 1/2 -14

  • 150mm

PS 1/8 -28 PS 1/4 -19 PS 3/8 -19 PS 1/2 -14 PS 3/4 -14 PS 1" -11

  • 200mm

PS 3/4 -14 PS 1" -11

【PT】

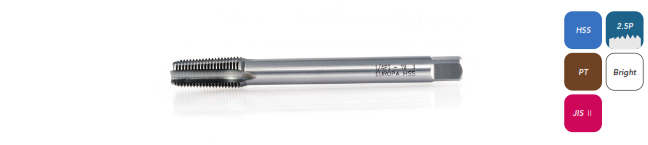

PT斜牙長柄管牙絲攻 LONG SHANK TAPER PIPE TAPS FOR PT THREADS



適用：於錐管內部的螺紋加工

規格

  • 100mm

PT 1/8 -28 PT 1/4 -19 PT 3/8 -19

  • 120mm

PT 1/8 -28 PT 1/4 -19 PT 3/8 -19 PT 1/2 -14

  • 150mm

PT 1/8 -28 PT 1/4 -19 PT3/8 -19 PT 1/2 -14 PT 3/4 -14 PT 1" -11

  • 200mm

PT 3/4 -14 PT 1" -11

【NPT】

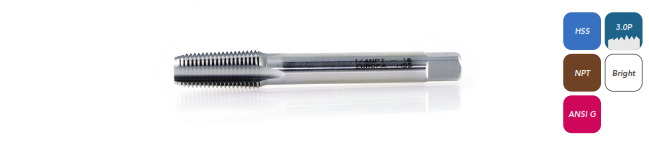

NPT斜牙長柄管牙絲攻 LONG SHANK SPIRAL FLUTED AMERICAN TAPER PIPE TAPS FOR NPT THREADS



適用：於錐管內部的螺紋加工

規格

  • 100mm

NPT 1/8 -27 NPT 1/4 -18 NPT 3/8 -18

  • 120mm

NPT 1/8 -27 NPT 1/4 -18 NPT 3/8 -18 NPT 1/2 -14

  • 150mm

NPT 1/8 -27 NPT 1/4 -18 NPT 3/8 -18 NPT 1/2 -14 NPT 3/4 -14 NPT 1" -11 1/2

  • 200mm

NPT 3/4 -14 NPT 1" -11 1/2

【NPS】

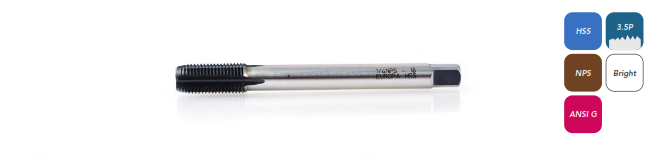

NPS 直牙長柄管牙絲攻 LONG SHANK SPIRAL FLUTED AMERICAN STRAIGHT PIPE TAPS FOR NPS THREADS



適用：於深孔之直管內部的螺紋加工

規格

  • 100mm

NPS 1/8 -27 NPS 1/4 -18 NPS 3/8 -18

  • 120mm

NPS 1/8 -27 NPS 1/4 -18 NPS 3/8 -18 NPS 1/2 -14

  • 150mm

NPS 1/8 -27 NPS 1/4 -18 NPS 3/8 -18 NPS 1/2 -14 NPS 3/4 -14 NPS 1" -11 1/2

  • 200mm

NPS 3/4 -14 NPS 1" -11 1/2
