產品介紹

螺絲攻


【螺旋】

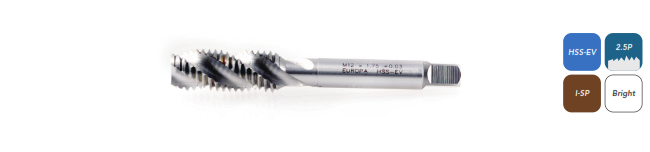

加大螺旋絲攻 SPIRAL FLUTE TAPS FOR OVER - SIZED



適用：於碳鋼、合金鋼的盲孔加工，具有優異的排屑

規格

  • +0.03

M 2 X 0.4 M 3 X 0.5 M 4 X 0.7 M 5 X 0.8 M 6 X 1.0 M 8 X1.25 M10X 1.5 M12X1.75 M14X 2.0 M16X 2.0
W3/16-24 W 1/4 -20 W5/16-18 W 3/8 -16 W 1/2 -12
NC 2 -56 NC 3 -48 NC 4 -40 NC 4 -40TIN NC 6 -32 NC 8 -32 NC 10-24 NF 10-32

  • +0.05

M 2 X 0.4 M 3 X 0.5 M 4 X 0.7 M 5 X 0.8 M 6 X 1.0 M 8 X1.25 M10 X 1.5 M12 X1.75 M14 X 2.0 M16 X 2.0
W3/16-24 W 1/4 -20 W5/16-18 W 3/8 -16 W 1/2 -12
NC 2 -56 NC 4 -40 NC 6 -32 NC 8 -32 NC 10-24 NF 10-32

  • +0.07

M 2 X 0.4 M 3 X 0.5 M 4 X 0.7 M 5 X 0.8 M 6 X 1.0 M 8 X1.25 M10 X 1.5 M12 X1.75 M14 X 2.0 M16 X 2.0
W3/16-24 W 1/4 -20 W5/16-18 W 3/8 -16 W 1/2 -12
NC 2 -56 NC 4 -40 NC 6 -32 NC 8 -32 NC 10-24 NF 10-32

  • +0.10

M 2 X 0.4 M 3 X 0.5 M 4 X 0.7 M 5 X 0.8 M 6 X 1.0 M 8 X1.25 M10 X 1.5 M12 X1.75 M14 X 2.0 M16 X 2.0
W3/16-24 W 1/4 -20 W5/16-18 W 3/8 -16 W 1/2 -12
NC 2 -56 NC 4 -40 NC 6 -32 NC 8 -32 NC 10-24 NF 10-32

【先端】

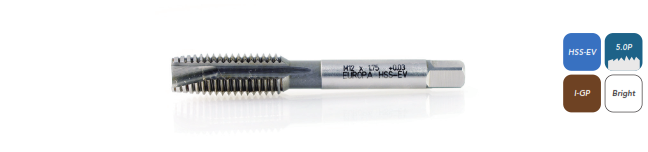

加大先端絲攻 SPIRAL POINT TAPS FOR OVER - SIZED



適用：於碳鋼、合金鋼的通孔加工，具有優異的排屑

規格

  • +0.03

M 2 X 0.4 M 3 X 0.5 M 4 X 0.7 M 5 X 0.8 M 6 X 1.0 M 8 X1.25 M10 X 1.5 M12 X1.75 M14 X 2.0 M16 X 2.0
W3/16-24 W 1/4 -20 W5/16-18 W 3/8 -16 W 1/2 -12
NC 2 -56 NC 4 -40 NC 6 -32 NC 8 -32 NC 10-24 NF 10-32

  • +0.05

M 2 X 0.4 M 3 X 0.5 M 4 X 0.7 M 5 X 0.8 M 6 X 1.0 M 8 X1.25 M10 X 1.5 M12 X1.75 M14 X 2.0 M16 X 2.0
W3/16-24 W 1/4 -20 W5/16-18 W 3/8 -16 W 1/2 -12
NC 2 -56 NC 4 -40 NC 6 -32 NC 8 -32 NC 10-24 NF 10-32

  • +0.07

M 2 X 0.4 M 3 X 0.5 M 4 X 0.7 M 5 X 0.8 M 6 X 1.0 M 8 X1.25 M10 X 1.5 M12 X1.75 M14 X 2.0 M16 X 2.0
W3/16-24 W 1/4 -20 W5/16-18 W 3/8 -16 W 1/2 -12
NC 2 -56 NC 4 -40 NC 6 -32 NC 8 -32 NC 10-24 NF 10-32

  • +0.10

M 2 X 0.4 M 3 X 0.5 M 4 X 0.7 M 5 X 0.8 M 6 X 1.0 M 8 X1.25 M10 X 1.5 M12 X1.75 M14 X 2.0 M16 X 2.0
W3/16-24 W 1/4 -20 W5/16-18 W 3/8 -16 W 1/2 -12
NC 2 -56 NC 4 -40 NC 6 -32 NC 8 -32 NC 10-24 NF 10-32
